Vanzare centru de prelucrare VM740s
25/04/2021 14:15 Agro si Industrie Cluj-Napoca 670 vizualizări Referinţă: 121742,000 lei
Localitate: Cluj-Napoca
Preț: 42,000 lei

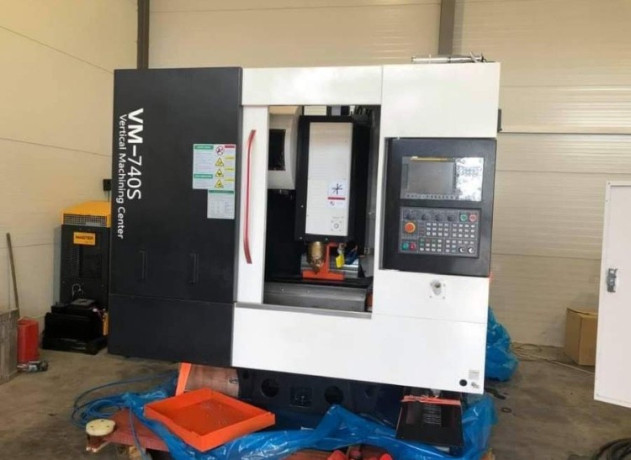

De vanzare centru de prelucrare VM740s
Worktable;750×420 mm;
TravelX/Y/Z
mm
Spindle speed 10~10000 rpm
Cutting feed speed 1~10000 mm/min
Tool magazine capacity 20T
Max. load capacity 400 kg
Spindle motor 5.5/7.5 kW, Spindle taper BT40;
Rapid feed speedX/Y/Z-axis 36/36/30
Positioning accuracy X/Y/Z-axis:0.008/0.008/0.008 mm
Repeatability X/Y/Z-axis:0.005/0.005/0.005mm
Power capacity:15 KV A,
Cooling tank capacity:160L
Machine Dimension l ×w ×h: 2020×2320×2700m
Net weight:4000kg
